JCY-420/520/730 Multifunction Automatic Vertical Packaging Machine Description

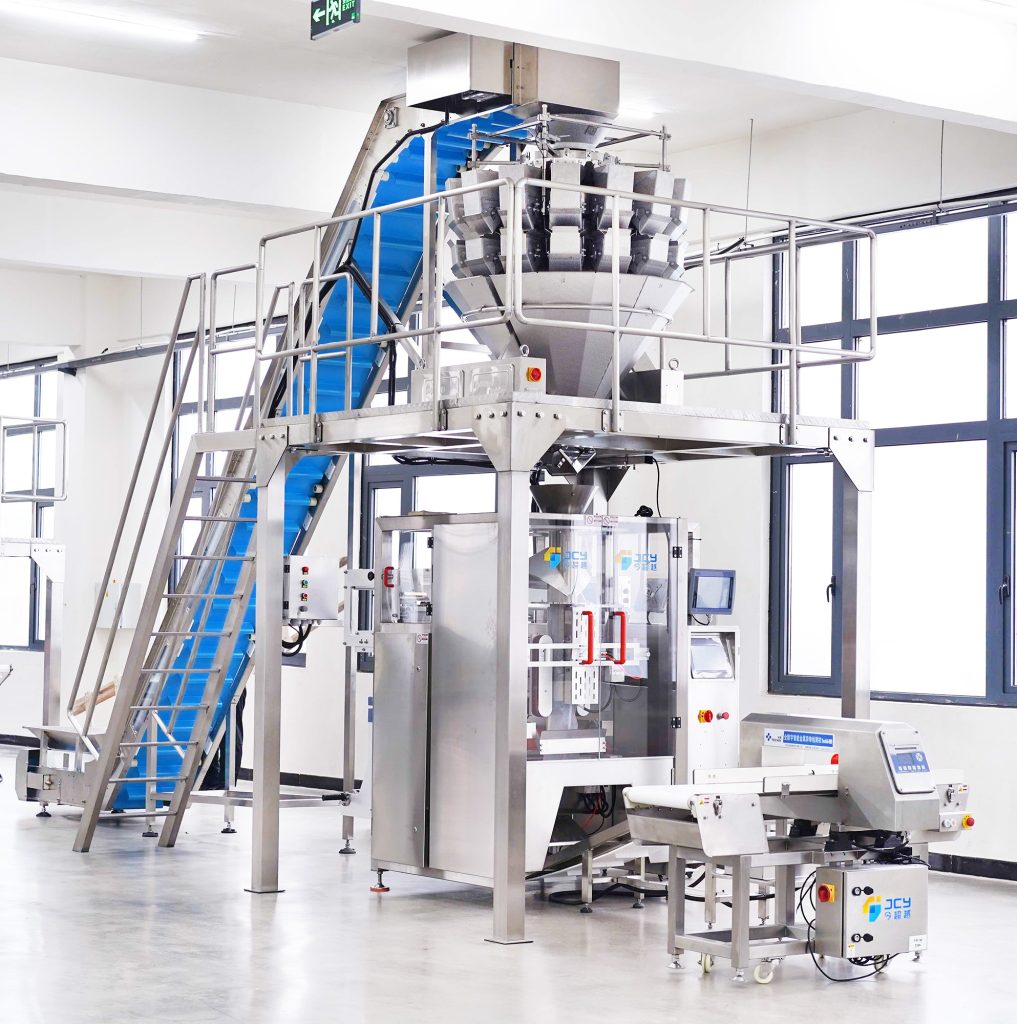

JCY-420/520/730 Multifunction Automatic Packaging Machine

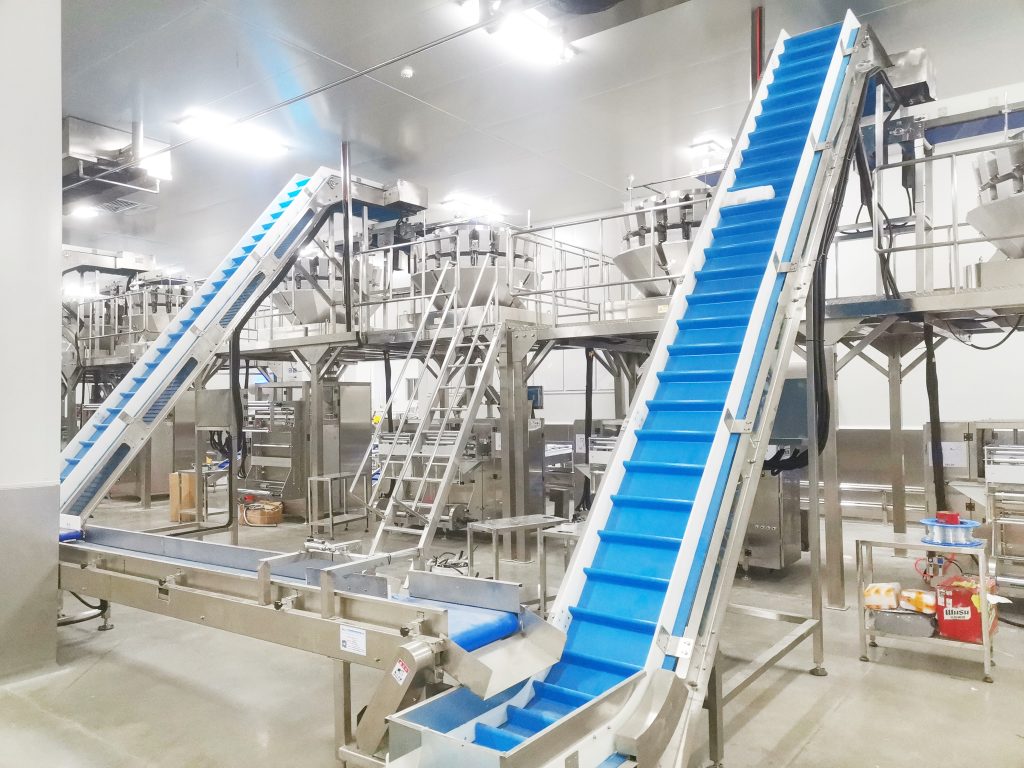

Automatic vertical packaging production line (packaging production line) adopts a vertical packaging machine designed on the basis of four servo control. Set automatic bag making, weighing, filling, sealing, printing, punching, cutting, sealing and other functions in one. Automatic completion of the whole process from feeding, metering, filling bag, printing date, output of finished products, high precision and high efficiency, saving labor costs.

Widely used in quick-frozen dumplings, meatballs, steamed buns, fried dough sticks, wontons, frozen vegetables, frozen fruits, hamburger embryos, french fries, chicken legs, chicken steaks, siomai, steamed buns, pork chops, spring rolls, pies, snacks, candies, biscuits, melon seeds , nuts, peanuts, pet food, sea food, and other food and non-food spare parts packaging.

The product can also print date, formula, QR code, barcode and other content and information on the packaging bag. Different coding machines can be selected according to different printing contents: ribbon coding machine, thermal transfer coding machine, UV coding machine.

Features:
  • Equipped with safety protection to meet enterprise safety management requirements.
  • Adopt intelligent temperature controller, accurate temperature control, ensuring perfect and smooth sealing.
  • The PLC servo system, pneumatic control system and ultra-large display touch screen form the drive control core, which maximizes the control accuracy, reliability and intelligence of the whole machine.
  • The touch screen can store packaging process parameters for a variety of different products, which can be used at any time when changing products without resetting.
  • Equipped with fault display: if a system fault occurs, it will help to troubleshoot the fault in time.
  • Pillow bags and perforated bags can be made according to customer needs.
  • Double servo vacuum film pulling is fast and stable, with low friction, low loss, more power, and avoids slipping that affects bag length.

Widely used in quick-frozen dumplings, meatballs, steamed buns, fried dough sticks, wontons, frozen vegetables, frozen fruits, hamburger embryos, french fries, chicken legs, chicken steaks, siomai, steamed buns, pork chops, spring rolls, pies, snacks, candies, biscuits, melon seeds , nuts, peanuts, pet food, sea food, and other food and non-food spare parts packaging.

ModelJCY-730JCY-520JCY-420
Packing Speed20-70bags/min20-75bags/min20-75bags/min
Filling Range200g-2500g200g-1000g200g-500g
Film Thickness0.05-0.1mm0.05-0.1mm0.05-0.1mm
Max Film Width730mm520mm420mm
Air Consumption0.5m³/min0.5m³/min0.5m³/min
Power5.5kw5.5kw3.5kw
Power Supply380V/50-60Hz380V/50-60Hz380V/50-60Hz
Whole Machine Weight850kg800kg750kg
Dimensions1800*1440*1900mm1800*1220*1680mm1500*1035*1850mm
